   WL-U356A  802.11b/g Wireless LAN USB Adapter with
    Ext. Antenna Interface

  • USB 2.0 Wireless LAN Adapter w/ Ext Antenna
  • Delivers 54 Mbps wireless throughput on the 2.4GHz band
  • Support external 2.4GHz Antennas
  • Handy for laptop and desktop PC
Please enter coupon code in the box. Leave it empty if you don't have one.
UNIT(S)
Unit Price
US$54.95
HongkongPost
INSURANCE

   Packaging Content
1)
Planet WL-U356A 802.11g USB2.0 WiFi adapter
1 unit
2)
CD-ROM with Windows ME/2K/XP drivers
1 unit
3)
Manual and Quick Setup Guide
1 unit

   Features and Benefits

Adherent to the IEEE 802.11g standard, the PLANET WL-U356A provides simple, reliable, high-speed wireless connections for both desktop and laptop users. By combining two state-of-the-art technologies-USB 2.0 and 802.11g, the gadget delivers data at speed up to 54Mbps, five times the speed of existing 802.11b devices, and spares the efforts of opening up the case of your desktop computer.

The WL-U356A provides an external antenna connector. It takes advantage of the flexibility and convenience of USB connections without sacrificing performance. Support of 64, 128 and 256-bit WEP encryption plus WPA (Wi-Fi Protected Access) high-level encryption keep your wireless communications from unauthorized access and ensure secure data transfer.

The WL-U356A supports software AP function, which can turn the USB adapter into a compact Access Point. The USB adapter is also backward compatible with 802.11b products, so both 11b and 11g clients can reside on the same network. Easy installation and hot-plugging offers full mobility and high availability, making the device a perfect choice for users who are getting tired of running cables or in constant need of wireless access.

Compliant with the IEEE 802.11g 2.4GHz (OFDM) standard
High data transfer rate - up to 54Mbps
Supports WEP 64/128/256 bits, WPA protection
Supports Infrastructure and Ad-Hoc mode
Software AP function support
Data rate automatic fallback increases reliability
Supports the most popular operating systems: Windows 98SE/Me/2000/XP
Detachable antenna design
USB 2.0 interface

   Product Applications

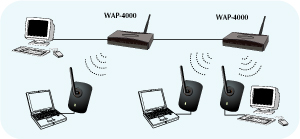

Infrastructure

For some environments with limitations on running Ethernet cables around, simply install the WL-U356A on your desktop or laptop, and users thus can get connected to the wired Ethernet through a wireless access point to access the network resources within the coverage of wireless signals. The installation of multiple access points to enlarge the coverage of wireless signals and can ensure seamless network access for mobile users.

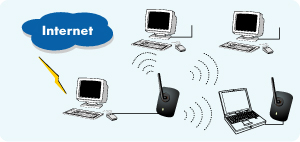

Software AP

This feature converts the WL-U356A into a compact wireless access point immediately, and this can create an instant wireless network, which spares the additional costs of purchasing a wireless access point.

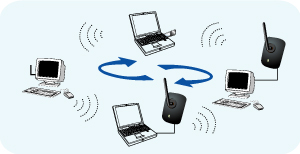

Ad-Hoc

Need connecting several desktop PC or notebooks wirelessly? Configuring all the wireless adapters to Ad-Hoc mode without wireless access point is the easiest and costly way to meet this demand.


   Specifications
Part number
WL-U356A
Interface
Complaint with USB 2.0 / 1.1 standard
Standards Conformance
Compliant with 802.11b / 802.11g
Data Transfer Rate
IEEE802.11b-1 / 2 / 5.5 / 11Mbps (auto sensing)
IEEE802.11g-6 / 9 / 12 / 18 / 24 / 36 / 48 / 54Mbps (auto sensing)
Operating Mode
Infrastructure Mode, Ad-Hoc Mode and Access Point Mode
Security
WEP 64/128/256bit, WPA, WPA-PSK
Emission type
Direct Sequence Spread Spectrum (DSSS) Technology
RF Modulation
OFDM with BPSK, QPSK, 16-QAM, 64QAM
Media Access Protocol
CSMA / CA
Operating Frequency / Channel
15dBm (32mW)2.412~2.462GHz (FCC, Canada) / 11 Channels
2.412~2.472GHz (Euro ETSI) / 13 Channels
2.412~2.4835GHz (Japan, TELEC) / 14 Channels
Output Power
15dBm (Typical)
Operating Range
Up to 100 meters (328 feet) transmit and receive
LED Indicators
ACT
Antenna Connector
Reverse-SMA
Temperature
Operating: 32 Degree F ~ 131 Degree F (0 Degree C ~ 55 Degree C) Storage: -13 Degree F ~ 158 Degree F (-20 Degree C ~ 70 Degree C)
Operating Humidity
Operating: 10% to 80% Non-Condensing
Storage: 5% to 90% Non-Condensing
Dimensions
109mm X 74mm X 40mm (L x W x H)
Weight
195g
Certifications
FCC, CE



Shopping Guide



Related Info

The +9.5dBi Omni RP-SMA antenna fits in this card.
You may also stretch the +9.5dBi Omni RP-SMA antenna to a sweet spot using the magnetic base.
