WHR-HP-G54 Airstation High Power Turbo G Smart
Router with Ext. Antenna Interface |
| |
|
|
|
| |
 Packaging Content |
1) |
Buffalo WHR-HP-G54 802.11g High Power 54Mbps/125Mbps* High Speed Turbo G WDS wireless router |
1 unit |
2) |
CD-ROM with Windows ME/2K/XP drivers |
1 unit |
3) |
Manual and Quick Setup Guide |
1 unit |
|
| |
Features and Benefits |

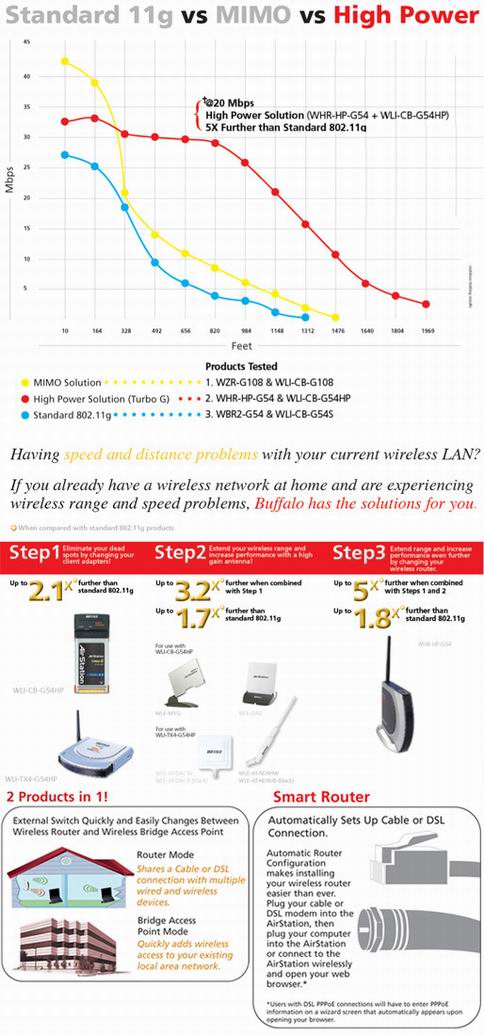

The Buffalo AirStation G54 High Power Wireless Cable/DSL Smart Router combines the High Power wireless performance with Buffalo’s AirStation One-Touch Secure System™ (AOSS™). Uniquely equipped with a built-in signal amplifier, the WHR-HP-G54 produces a true 60% increase in wireless transmit power over a standard 802.11g wireless router. WHR-HP-G54 extends the range of standard 802.11g client devices by up to 70% and improves overall performance by up to 50%.
 Watch AOSS in Action (wmv)
The WHR-HP-G54 supports, also known as Wireless Distribution System or the Bridge/Repeater Mode, for point-to-point or point-to-multipoint communication and covers dead spots in Wireless LAN's. WDS allows WHR-HP-G54 to wirelessly communicate with other AirStation Access Points and Routers that support WDS.
This Smart Router automatically detects and configures your Cable or DSL internet connection. Security features include WPA, WEP, Privacy Separator, Intrusion Detector, and SPI firewall. In addition to fast wireless performance, WHR-HP-G54 features a built-in external switch between wireless router and wireless access point modes. The combination of speed, security, and push-button setup of wireless connections and internet, makes the Buffalo AirStation G54 High Power Wireless Cable/DSL Smart Router the perfect choice for your wireless network.
 |
 |
|
Built-in Amplifier Improves Wireless Performance and Extends Range |
|
|
|
802.11g Wireless 125* High-Speed Mode™ Transfer Rates When Used with 125* High-Speed Mode™ Adapter (Turbo G) |
|
|
|
Simple Web Browser Configuration |
|
|
|
Supports WDS To Increase Coverage With Optional Repeater |
|
|
|
External Switch To Instantly Change Between Wireless Router and Wireless Access Point |
|
|
|
Easy Setup with AirStation One-Touch Secure System™ (AOSS™) |
|
|
|
Automatic Channel Support Selects Best Available Wireless Networking Channel |
|
|
|
Supports WPA-PSK (TKIP, AES) and 128/64-bit WEP Security |
|
|
|
Includes NAT and SPI Firewall and Intrusion Detector |
|
|
|
Dynamic Packet Filtering |
|
|
|
Built-in DHCP Server |
|
|
|
Built-in 10/100 4-Port Auto-Sensing Switch |
|
|
|
Optimized High-Speed Routing, up to 5 Times Faster than Standard Routers |
|
|
|
Great Value. Higher Performance than Standard 802.11g at Comparable Prices |
|
|
|
Support External Antenna such as the TurboTenna 007GT antenna to provide remarkable performance and range solutions |
|
|
|
| |
Specifications |
Technical Specifications - Wireless LAN Interface |
Standards Compliance |
IEEE802.11b (Wireless LAN Standard) IEEE802.11g (Wireless LAN standard) |
Communication Protocol |
Direct Sequence Spread Spectrum (DSSS),OFDM |
Frequency Range |
802.11g 125* High-Speed Mode™: 13, 20, 27, 40, 54, 80, 110, 125 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 2, 5.5, 11 Mbps |
Access Mode |
Infrastructure mode, WDS |
Security |
WPA-PSK(AES, TKIP), 128/64-bit WEP,Wireless Power Output Setting,MAC Address Registration |
|
|
Technical Specifications - Wired LAN Interface |
Standards Compliance |
IEEE802.3u(100 Base-TX)
IEEE802.3(10 Base-T) |
Transmission Rate |
10/100 Mbps |
Transmission Encoding Method |
100 BASE-TX 4B5B/MLT-3
10 Base-T Manchester Coding |
Access Method |
CSMA/CD |
LAN Port |
10/100 Mbps, Auto Sensing, Auto MDIX |
Number of LAN Ports |
4 |
WAN Port |
10/100 Mbps, Auto Sensing, Auto MDIX
High-Speed Routing to Support FTTH |
Number of WAN Ports |
1 |
WAN/LAN Port Connector |
RJ-45 |
Security |
Dynamic Packet Filtering, Intrusion Detector, NAT/SPI Firewall |
|
|
Other |
Power Supply |
100-240V AC Universal, 50/60 Hz |
|
| |
|
|
|
