WHR-G54S Airstation 125*/54Mbps High Speed
Turbo G Smart Router with Ext. Antenna Interface |
| |
 |
-
802.11b/g Wireless Cable/DSL Router offers 125*/54Mbps remarkable High Speed Mode.
-
High level security with WPA, Privacy Separator and Intrusion Detector.
-
Supports WDS* Bridge/Router mode
|
|
|
|
| |
 Packaging Content |
1) |
Buffalo WHR-G54S 802.11g 54Mbps/125Mbps* High Speed Turbo G WDS wireless router |
1 unit |
2) |
CD-ROM with Windows ME/2K/XP drivers |
1 unit |
3) |
Manual and Quick Setup Guide |
1 unit |
|
| |
Features and Benefits |

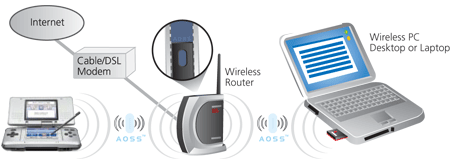

The Buffalo Wireless-G High Speed Router and Access Point combines the 125* High Speed Mode wireless performance with Buffalo's AirStation One-Touch Secure System™ (AOSS™). This router increases “real world” wireless performance up to 35% compared to a standard 802.11g Router. This Smart Router automatically detects and configures your Cable or DSL internet connection. Security features include WPA, WEP, Privacy Separator, Intrusion Detector, and SPI firewall.
 Watch AOSS in Action (wmv)

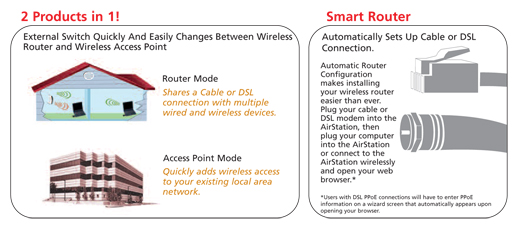

In addition to fast wireless performance, WHR-G54S features a built-in external switch between wireless router and wireless access point modes. The combination of speed, security, and push-button setup of wireless connections and internet, makes the Buffalo Wireless-G High Speed Router & AP the perfect choice for your wireless network.
 |
 |
|
802.11g Wireless 125* High- Speed Mode™ Transfer Rates When Used with 125* High-Speed Mode™ Devices |
|
|
|
Simple Web Browser Configuration |
|
|
|
Supports WDS To Increase Coverage With Optional Repeater |
|
|
|
External Switch To Instantly Change Between Wireless Router and Wireless Access Point |
|
|
|
Automatic Channel Support Selects Best Available Wireless Networking Channel |
|
|
|
Supports WPA-PSK (TKIP, AES) and 128/64-bit WEP Security |
|
|
|
Includes NAT and SPI Firewall and Intrusion Detector |
|
|
|
Dynamic Packet Filtering |
|
|
|
Built-in DHCP Server |
|
|
|
Built-in 10/100 4-Port Auto-Sensing Switch |
|
|
|
Optimized High-Speed Routing, up to 5 Times Faster than Standard Routers |
|
|
|
RP-SMA to MC coupler required for use with the WLE-DA2, WLE-HG-NDR and WLE-MYG antennas. Coupler not included. |
|
|
|
Works seamlessly with Nintendo DS™ |
|
|
|
| |
Specifications |
Part number |
WHR-G54S |
Technical Specifications - Wireless LAN |
Standard Compliance |
IEEE802.11b, IEEE802.11g |
Communication Protocol |
Direct Sequence Spread Spectrum (DSSS),OFDM |
Frequency Range |
2,412 - 2,462 MHz (1 - 11 channel) |
Transmission Rate |
802.11g 125* High-Speed Mode™: 13, 20, 27, 40, 54, 80, 110, 125 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 2, 5.5, 11 Mbps |
Access Mode |
Infrastructure Mode, WDS |
Security |
WPA-PSK(AES, TKIP), 128/64-bit WEP,Wireless Power Output Setting,MAC Address Registration |
Technical Specifications - Wired LAN Interface |
Standard Compliance
|
IEEE802.3u(100 Base-TX)
IEEE802.3(10 Base-T) |
Transmission Rate |
10/100 Mbps |
Transmission Encoding Method |
100 BASE-TX 4B5B/MLT-3
10 Base-T Manchester Coding |
Access Method |
CSMA/CD |
LAN Port |
10/100 Mbps, Auto Sensing, Auto MDIX |
Number of LAN Ports |
4 |
WAN Port |
10/100 Mbps, Auto Sensing, Auto MDIX
High-Speed Routing to Support FTTH |
Number of WAN Ports |
1 |
WAN/LAN Port Connector |
RJ-45 |
Security |
Dynamic Packet Filtering, Intrusion Detector, NAT/SPI Firewall |
Technical Specifications - Other |
Power Supply |
100-240V AC Universal, 50/60 Hz |
Power Consumption |
About 3.4 W (Max) |
Dimensions |
1.1 x 5.1 x 5.7 in. (28 x 130 x 144 mm) |
Weight |
9.5 oz. (277 g) |
Environmental Operation |
0-40ºC, 20-80% (non-condensing) |
|
| |
|
|
|
