+18dBi Booster and RF Cable Antenna Kit
|
| +18dBi TurboTenna Booster with 6FT RP-SMA RF cable |
| Pushing the WiFi adapter performance to its limits |
| See more WiFi signals in your radar screen |
| Tripod equipped for easy setup in a sweetspot |
|

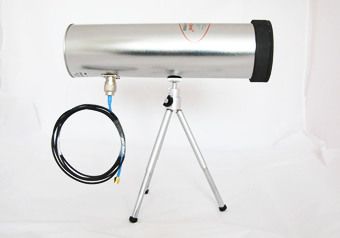

This kit consists of the +18dBi TurboTenna waveguide antenna and the 6FT Ultra Low Loss LMR-100A RF cable with the RP-SMA connector termination.
The RP-SMA connector allows you to connect to the 4" and 6" U.FL thin cable sold by us and most of the popular USB WiFi adapter compatible with it, such as the one in the picture on the left.
The +18dBi TurboTenna is a waveguide booster antenna which picks up WiFi signal in the direction it is pointing. Penetrates in-house concrete walls to improve signal strength and quality. Unlike other cantenna and copycat Yagi with poor impedance matching, the TurboTenna is specially engineered and manufactured to push the 2.4GHz WaveGuide technology to its limits.
See
diagram on the right showing the signal
strength with and without the TurboTenna.
It is easy to install and set up - simply unscrew the rubber duck antenna from your router or USB dongle and connect it to the TurboTenna with your matching RF cable. It immediately becomes a handy WarDriving tool. It's fun!
It looks elegant on book shelf with the glossy metal frame and the front black protective plastic nose.
What's more? We paid our workers fairly beyond the standard of FairTrade, and we use NO PAINT on the body of the antenna so it is free from the hazardous lead materials usually found in BLACK paint.
Simply strong!
 |
Packaging Content |
| |
+18dBi TurboTenna 11N PRO WiFi antenna with tripod |
1 unit |
| |
6FT Ultra Low-Loss LMR-100A RF cable (N-male to RP-SMA) |
1 unit |
| |
User Guide |
1 unit |
top
|
Features and Benefits |
| |
Works with 802.11b/g & 802.11n wireless router and adapter |
| |
High gain and excellent penetration booster |
| |
Equipped with a tripod for easy polarization adjustment for the best results |
| |
Precisely engineered for impedance matching |
| |
Made of high quality and light weight metal |
| |
Boost the signal for eliminating the blind spot |
top
|
Specifications |
| |
Frequency |
2.4GHz to 2.5GHz |
| |
Gain |
+18dBi |
| |
Beam Width |
~44 deg |
| |
Impedance |
50 Ohm |
| |
Max Input |
50 Watts |
| |
VSWR |
< 1.5:1 avg |
| |
Length |
30cm |
| |
Material Base |
Metal |
| |
RF Connector |
N-female |
| |
Polarization |
Linear |
| |
RF cable |
6FT LMR-100A (N-male to RP-SMA) |
top |
